Product Details

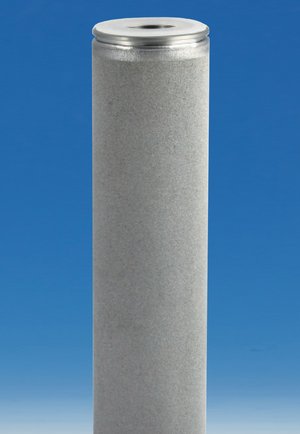

Masterfilter SDF-S Cartridge

SDF-S - Powder Sintered Stainless Steel Cartridge

Brand MF
Media: Liquids Gases -
Micron Ratings: 1.0 to 100 µm
Filter Type: Metallic

The Masterfilter SDF-S series filter cartridges are constructed with stainless steel powder. First shaped under pressure and then sintered under high temperature based on y unique technology and strict production process. High mechanical strength, high temperature resistance and cleanability are the main features of the SDF-P cartridge filters.

Features Benefits

  • All stainless steel construction
  • Free particle release
  • High temperature, corrosive and oxidation resistant
  • Narrow pore distribution and high separation efficiency
  • Excellent permeability
  • High voids and lower filtration resistance
  • Reverse flow

Markets

  • Chemicals

Technical Specification

Materials of construction
Filter media: Powder sintered stainless steel
End caps: Stainless steel
O-rings: EPDM, Silicone, Viton, PTFE

Operating parameters
Max. differential pressure: 4 bar at 21 °C (forward flow)
Recommended continuous operating temperature: - 75 °C to + 200 °C
Nominal diameter: 60 mm

Applications

  • API (Active Pharmaceutical Ingridients)
  • Raw Materials Clarification
  • Raw Materials Intermediate Polishing
  • Final Product Filtration

Filter Properties

  • Comply with the relevant requirements of EU 1935/2004 and EU directive 10/2011
