DFSB Depth Filtration Modules

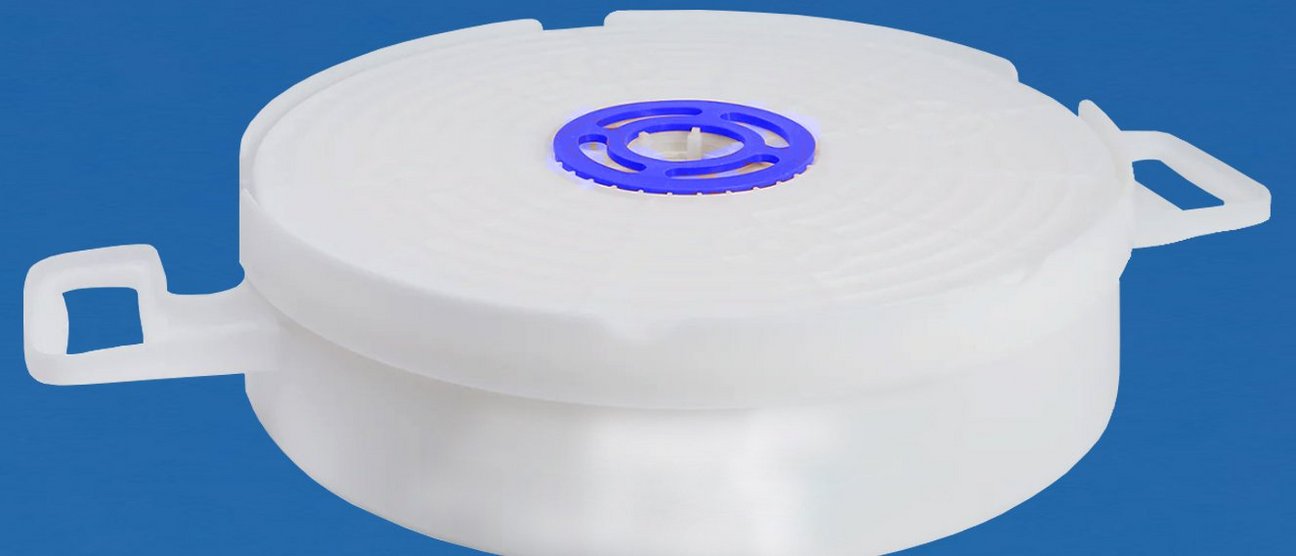

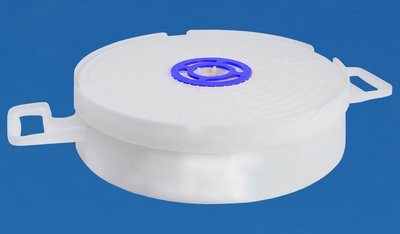

Masterfilter Depth Filtration Modules - DFSB

The Masterfilter DFSB series filter modules are available with filter media of high-purity lignocellulose and inorganic filter aid agent and high-purity cross-weaved lignocellulose and activated carbon powder. The internal porous three-dimensional structure with large internal surface area delivers excellent filtration performance and high dirt holding capacity for depth filtration applications. The filter sheets are manufactured with our highly automated proprietary process. All raw materials are controlled through our world-class quality system to ensure robust product quality and consistent filtration performance.

Features

  • Excellent filtration efficiency
  • High dirt holding capacity
  • Single and double layer version
  • Longer lifetime

Typical Applications

  • Fermentation broth and cell culture media clarification
  • Serums and blood products
  • Enzyme preparation
  • Particle removal
  • Colloidal and viscous materials
  • Decolorization of API
  • Endotoxin removal
  • Filtration of blood products
  • Clarification of biochemical products

Materials of Construction

  • Filter media: Cellulose, diatomite filter aid and ionic wet-strength resin (positive or negative charged) or Cellulose, activated carbon powder, ionic wet-strength resin (positive charged)
  • Out shell: Polypropylene
  • Sealing: Thermal bonding

Technical Parameters

  • Max. Temperature: 40 °C
  • Max. Differential Pressure: 3.0 bar at 40 °C
  • Flush Volume before use: Single layer: 50 l/m², double layer: 100 l/m²
  • Flow rate: 10 l/min/m²
  • Effective Filtration Area: Single-layer: 1.15 m², Double-layer: 0.92 m²

Biological Standards

  • Bacterial Endotoxin: Aqueous extraction of autoclaved filter contains < 0.25 EU/ml as determined by Limulus Amebocyte Lysate (LAL), USP <85>
  • Meet the requirement of USP<87> In Vitro Cytotoxicity Test
  • Meet the criteria of the USP<88> Biological Reactivity Test for Class VI-121 °C plastics
