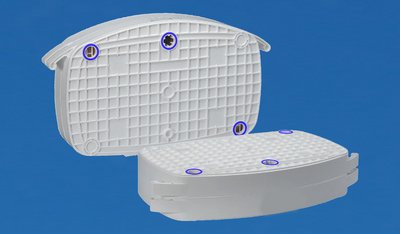

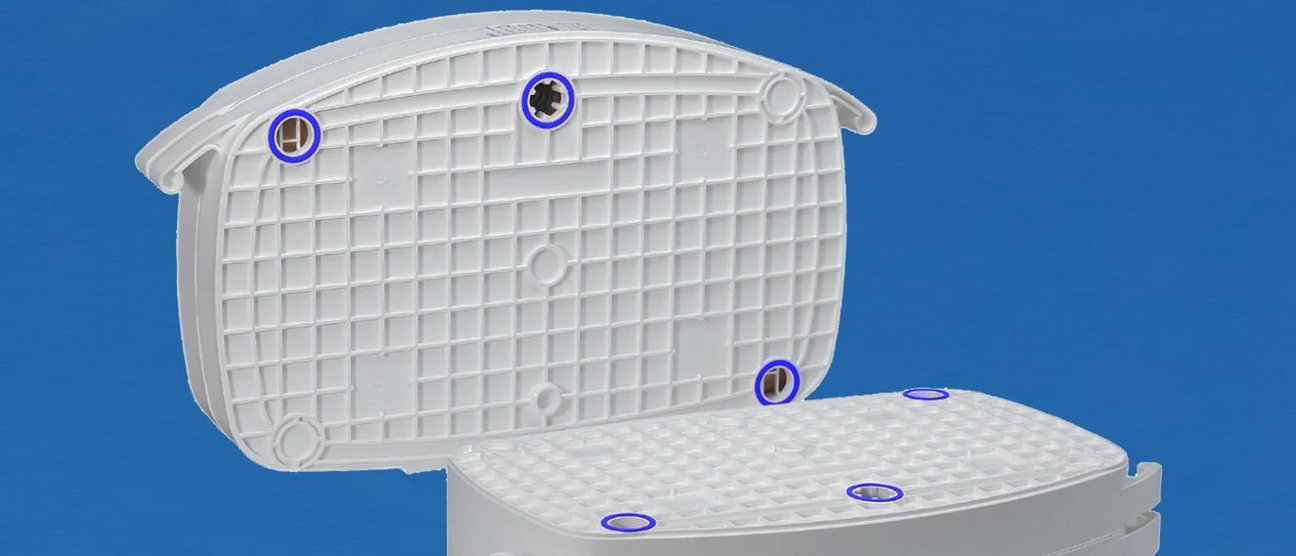

DFSM Depth Filtration Modules

Masterfilter Depth Filtration Modules - DFSM

The Masterfilter DFSM series depth filter modules are composed of high-purity cellulose fibers and inorganic filter aids and with activated carbon powder through a special process. The internal interwoven three-dimensional structure delivers excellent filtration efficiency and high contaminant holding capacity in depth filtration applications. The production of these cassettes utilizes advanced and highly automated manufacturing process. All raw materials undergo rigorous quality control inspection to ensure consistent product quality and filtration performance.

Features

  • Excellent filtration efficiency
  • High dirt holding capacity
  • Single and double layer version
  • Longer lifetime

Typical Applications

  • Clarification filtration of fermentation broth and cell culture fluids
  • Filtration of serums and blood products
  • Filtration of enzyme preparation
  • Impurity removal and decolorization filtration of pharmaceuticals
  • Filtration of colloidal or viscous liquids

Materials of Construction

  • Filter media: Cellulose, diatomite filter aid and ionic wet-strength resin (positive or negative charged) or Cellulose, activated carbon powder, ionic wet-strength resin (positive charged)
  • Housing material: Glass fiber-reinforced polypropylene
  • Accessory material: Polypropylene, Glass fiber-reinforced polypropylene

Technical Parameters

  • Max. Operating Pressure: 3.5 bar at 40 °C
  • Max. Differential Pressure (forward): 2.1 bar at 40 °C
  • Max. Differential Pressure (reverse): 1.0 bar at 40 °C
  • Sterilization: 2 autoclave cycles for 60 minutes at 123 °C

Biological Standards

  • Bacterial Endotoxin: Aqueous extraction of autoclaved filter contains < 0.25 EU/ml as determined by Limulus Amebocyte Lysate (LAL), USP <85>
  • Meet the requirement of USP<87> In Vitro Cytotoxicity Test
  • Meet the criteria of the USP<88> Biological Reactivity Test for Class VI-121 °C plastics
