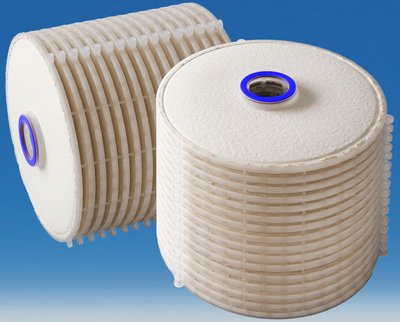

LCMZ Lenticular Modules - High purity cellulose and inorganic filter aid

The Masterfilter LCMZ lenticular filter modules are composed of high purity lignocellulose and inorganic filter aid agent. The inner three-dimensional structure allows it to be a depth filter medium while providing excellent filtration efficiency, high dirt holding capacity and longer life. Due to the small amount of synthetic resin in the filter paper which can not only improve the wet strength, but also provides a positive charge to ensure the adsorb efficiency.
Using a high purity cellulose reducing the level of ion precipitation and endotoxin makes the LCMZ suitable for biopharmaceutical and other high purity applications. The filter aid agent in the filter paper creates an inner three-dimensional structure which ensures a higher dirt holding capacity and longer lifetime.
Features
- Excellent filtration efficiency
- High dirt holding capacity
- Longer lifetime
- Available diameter: 12 and 16 inches
- Available number of discs: 2 to 16
Typical Applications
- Fermentation broth and cell culture media clarification
- Serums and blood products
- Enzyme preparation
- Particle removal
- Colloidal and viscous materials
Materials of Construction
- Filter media: Cellulose, diatomite filter aid and ionic wet-strength resin, positive or negative charged
- Core / cage: Polypropylene
- O-rings: Silicone, EPDM, Viton, FEP/PFA encapsulated
Operating Parameters
- Max. Temperature: 80 °C
- Max. Differential Pressure: 2.4 bar at 80 °C
- Filtration Area 12” diameter: 0.11 m² per disc
- Filtration Area 16” diameter: 0.23 m² per disc
- Pure Water before use: Volume single-layer: 50 l/m², Volume double-layer: 100 l/m², Flow rate: 10 l/min/m²
Biological Standards
- Bacterial Endotoxin: Aqueous extraction of autoclaved filter contains < 0.25 EU/mL as determined by Limulus Amebocyte Lysate (LAL), USP <85>
- Meet the requirement of USP<87> In Vitro Cytotoxicity Test
- Meet the criteria of the USP<88> Biological Reactivity Test for Class VI-121°C plastics
