Product Details

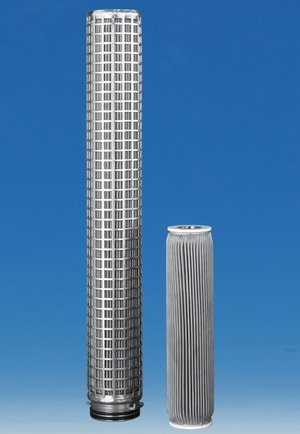

SDF-P - Pleated Stainless Steel Wire Cloth Cartridge
Brand MF
The Masterfilter SDF-P series pleated stainless steel wire cloth cartridges are composed of 316 stainless steel wire cloth. The pleated structure provides a larger filtration area which results in longer service life and higher flow rates. The SDF-P cartridges have a superior strength and thermal resistance which makes this filter ideal for high pressure and temperature applications.
Features Benefits
- All 316 stainless steel construction
- Pleated wire cloth
- Inside support layer
- Outside protection net available
- High flow rate
- High temperature, corrosive and oxidation resistant
- High pressure back-flushing
- Can be cleaned and reused
- No fiber releasing
Markets
- Chemicals
Technical Specification
Materials of construction
Filter media: Multilayer of 316 stainless steel
Inside support layer: 316 stainless steel
End caps: 316 stainless steel
O-Rings: EPDM, Silicone, Viton, PTFE
Operating parameters
Max. differential pressure: 8.6 bar at 21 °C (forward flow)
Max. differential pressure: 2.0 bar at 21 °C (reverse flow)
Recommended continuous operating temperature: - 75 °C to + 200 °C
Applications
- API (Active Pharmaceutical Ingridients)
- Raw Materials Clarification
- Raw Materials Intermediate Polishing
- Final Product Filtration
Filter Properties
- Comply with the relevant requirements of EU 1935/2004 and EU directive 10/2011
