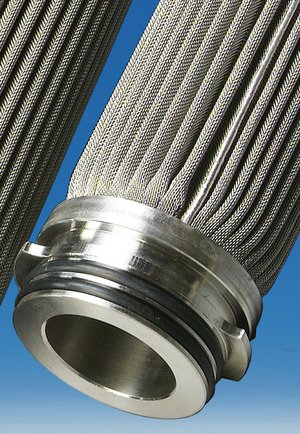

SDF-M Pleated Stainless Steel Felt Cartridge Filter

Brand MF

Media: Liquids Gases -

Micron Ratings: 1.0 to 60 µm

Filter Type: Pleated Media

The Masterfilter SDF-M stainless steel pleated felt cartridges are composed of stainless steel sintered felt shaped during the pleating process. These cartridges have a large filtration area with high flow rates and low pressure drops. The unique stainless steel felt is made from stainless steel fibers which have been sintered to form a high porous depth filtration material. The SDF-M filter cartridges features include a graded pore size from coarse (upstream) to fine (downstream), which results in a higher dirt holding capacity with an excellent filtration efficiency and longer service life. These filters are widely used in steam filtration or liquids with high viscosities.

Features Benefits

Available in 316 stainless steel compatible with aggressive chemicals
Cartridge can be cleaned and re-used
Welded construction
Retrofits for many existing filter cartridges
High flow rate
High temperature resistant and pressure
Corrosive and oxidation resistance

Markets

Chemicals

Technical Specification

Materials of Construction
Filter media: Multilayer of 316L Stainless Steel Wire Felt, pleated
Cage: 316L Stainless Steel
Support: 316L Stainless Steel
Core: 316L Stainless Steel
End caps: 316L Stainless Steel
O-rings: EPDM, Silicone, Viton, PTFE

Operating Parameters
Max. differential pressure: 5.0 bar at 21 °C (forward flow)
Max. differential pressure: 2.0 bar at 21 °C (reverse flow)
Recommended continuous operating pressure: - 75 °C to + 200 °C
Hot water sterilization: 85 °C for 30 minutes at differential pressure of 2.0 bar
Effective filtration area: 0.12 m² / 10 inch
