Tubings and Assemblies

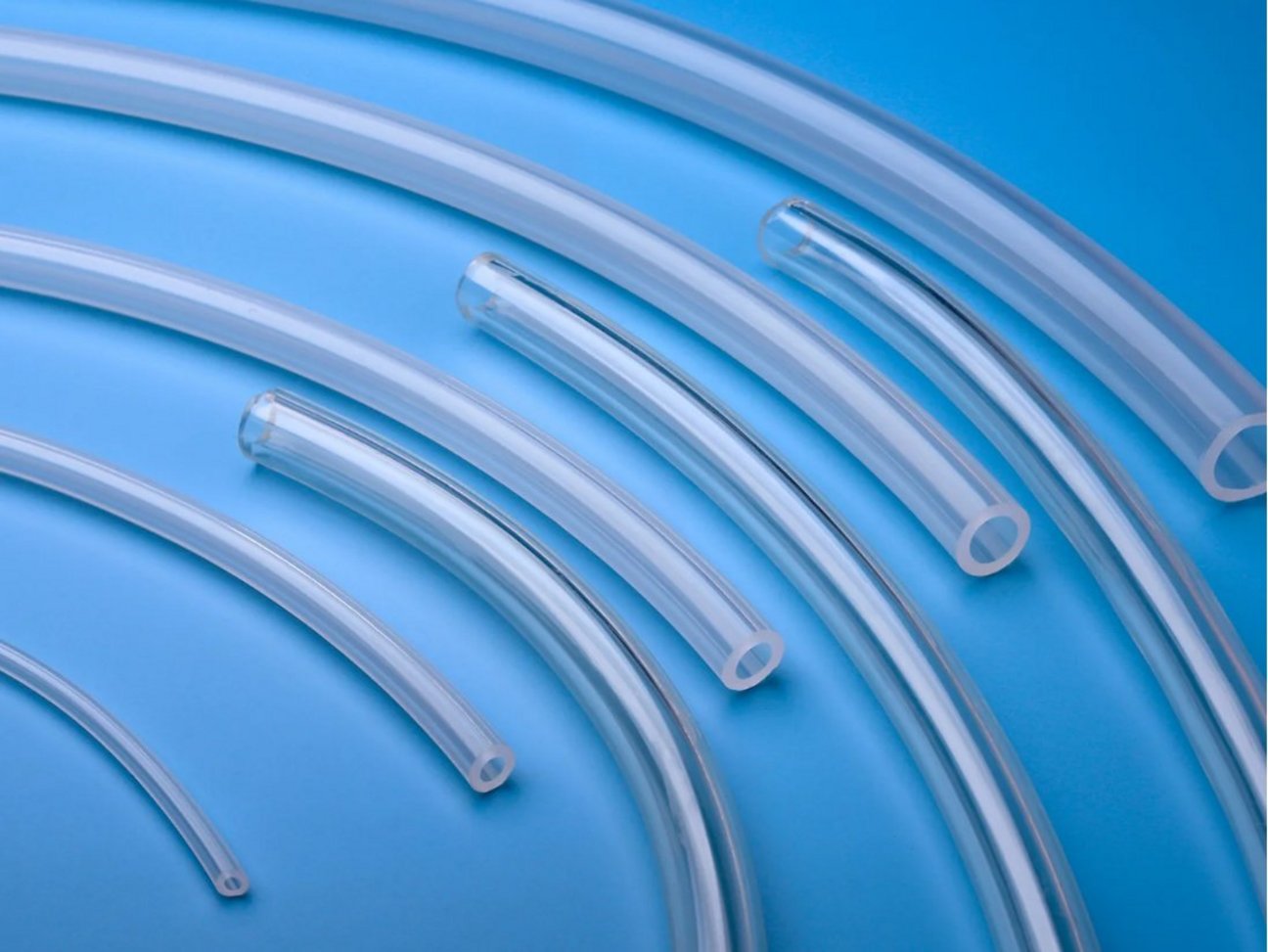

Single-use Tubings and Assemblies for fluid transfer are widely used in modern bioprocessing, including buffer and media preparation, tangential flow filtration, chromatography and sterile filling. The Lifecube® Tubings and Assemblies are available in STT Platinum Cured Silicone Tubing or STF Thermoplastic Elastomer Tubing with tubing diameters (inner) from 1/8" (3 mm) to 1/2" (12.7 mm). The single-use tubing assemblies are manufactured and packaged in ISO 5-7 clean rooms.

Available Connectors:

  • AseptiQuik G Connectors to Tri-Clamps (TC)
  • CPC MPC/MPX Quick Couplers to Tri-Clamps (TC)
  • Tee Fitting Connectors

Quality Assurance

  • ISO 9001:2015 quality management system
  • ISO Class 7 clean zone
  • 100% leak testing
  • ADCF raw materials
  • Meet FDA Indirect Food Additive requirements cited in 21 CFR 177-182
  • Meet requirement of USP <87> In Vitro Biological Reactivity Test
  • Meet requirement of USP <88> Biological Reactivity Test for Class VI plastics
  • Aqueous extraction contains < 0.25 EU/ml as determined by Limulus Amebocyte Lysate (LAL), USP <85>
  • Particulate matter in the product eluent meets the requirements in USP <788> for large volume parenterals
  • Verify gamma irradiation dose according to ISO 11137


  • Provide common used connector assemblies
  • Double-layer sterile packaging sterilized by 25-45 kGy gamma irradiation
  • Provide non-sterile packaging that can be autoclaved
  • Variable and flexible customized solutions

Typical Applications

  • Connect single-use systems to stainless steel systems
  • System connection with different connectors
  • Easy to connect with different bags
